1. Mining Environments: Explosion Protection Comes First
Coal mines contain flammable media such as methane and coal dust. If an electrical device generates a spark or localized heat, it may cause a blast. Explosion protection is therefore not a bonus for mining electrical equipment — it is a prerequisite for safety.
Beyond sparks from electrical faults, static electricity is an easily overlooked ignition source: static charge accumulates on insulating surfaces, and when the potential rises high enough, a tiny discharge is enough to ignite the surrounding flammable gas. For mining electrical enclosures, junction boxes and flameproof components, the anti-static and insulating properties of the material are equally critical.
2. Anti-Static Starts with Surface Resistivity
The core indicator of an anti-static material is surface resistivity. If resistivity is too high, static charge is hard to dissipate and tends to accumulate; if too low, it can bring leakage and shock risk. T/CEEIA 904-2025, Electrical Anti-Static Fiber-Reinforced Unsaturated Polyester Molding Compounds, classifies materials into three levels by surface resistivity:
Anti-static level | Surface resistivity (Ω) | Flammability |
AS-1 | < 1.0×10⁵ | Not less than HB |
AS-2 | 1.0×10⁵ – 1.0×10⁶ | Not less than HB |
AS-3 | > 1.0×10⁶ and < 1.0×10¹¹ | Not less than V0 |
(Classification per T/CEEIA 904-2025, a China Electrical Equipment Industry Association group standard. For environments with explosion risk such as mining, material selection should be evaluated against the specific explosion protection level and applicable standards.)
3. The 15XX Series: Anti-Static BMC

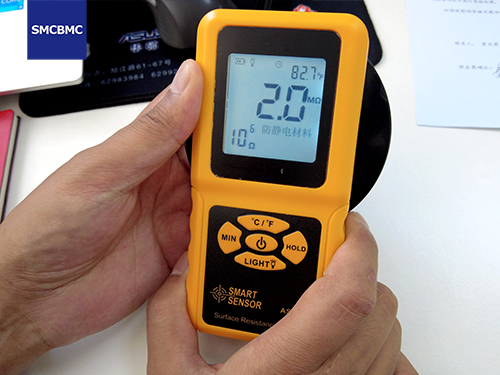

The Wenzhou Jintong BMC 15XX series is engineered around anti-static performance, with surface resistivity of 10⁶–10⁹ Ω (in-house testing, typical values), sitting in the middle of the anti-static classification — it charges dissipate effectively while retaining a safety margin. The series is available in black only and suits explosion-proof scenarios.
Established in 2001, the company provides integrated material, mold and molding capability and can formulate to underground working conditions. Where flame retardancy is also required, the 16XX series (UL94 V-0 at 0.4 mm, glow-wire 960℃) can be combined to deliver both anti-static and flame-retardant reliability.
4. Typical Applications and Selection Guidance
• Mining flameproof electrical enclosures: explosion-proof chambers and terminal support parts — anti-static plus structural strength;
• Mining junction boxes / connectors: prevent static build-up ignition, with insulation and protection;
• Underground lighting housings and insulation parts: safe electrical components in combustible environments;
• Selection tips: evaluate against the explosion protection level, flammable medium and applicable standards; confirm surface resistivity and flammability grade first.
5. Conclusion
In flammable mining environments, insulation parts must not only insulate but also resist static and ignition. With integrated material, mold and molding capability, Wenzhou Jintong delivers reliable selection for mining electrical equipment that balances anti-static and insulation safety.
