In engineering design, questions such as “How much will this housing deform under load?”, “Will it crack over time?”, or “Is dimensional stability guaranteed in long-term use?” are not answered by intuition—they are addressed through solid mechanics, especially elasticity theory.
This article explains how elasticity theory helps interpret the mechanical behavior of BMC (Bulk Molding Compound) and SMC (Sheet Molding Compound) materials, and how these principles guide material selection and structural design in real engineering applications.
Elasticity theory is a core branch of solid mechanics that studies how materials deform and internally respond when subjected to external forces, temperature changes, or other environmental loads.
It is fundamentally concerned with three key physical quantities:
Stress represents internal force per unit area within a material. It describes the intensity of internal loading.

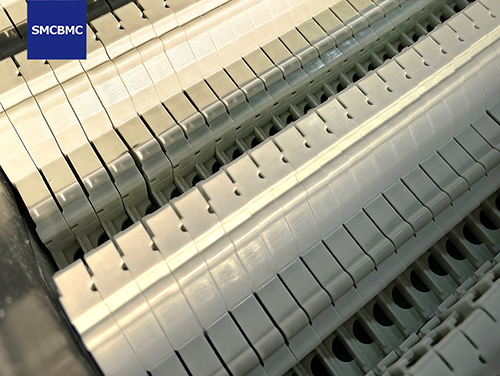

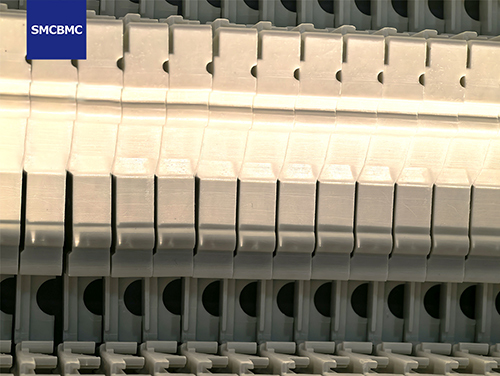

In BMC/SMC components such as circuit breaker housings, stress is distributed throughout the structure when subjected to mechanical impact or assembly forces. Design safety requires that maximum stress remains below the material’s allowable strength.
Strain describes the relative deformation of a material under load.
Excessive strain in BMC/SMC parts may lead to:
dimensional distortion
assembly failure
reduced electrical clearances
Displacement refers to the movement of points within a structure.
In mold design, displacement analysis is used to predict:
shrinkage
spring-back after demolding
final dimensional accuracy
These three variables are interconnected through material properties such as:
Elastic modulus
Poisson’s ratio
Strength limits
BMC and SMC are fiber-reinforced thermoset composites, meaning their mechanical behavior is not fully isotropic. Properties vary depending on fiber orientation.
However, in engineering practice, macroscopic averaged parameters are commonly used for design and simulation.
Elastic modulus defines a material’s resistance to deformation.
Typical values:
Glass fiber reinforced BMC/SMC: ~1.4–2.5 GPa (general range)
Specific BMC grades: tensile modulus up to ~18.5 GPa
Flexural modulus: ~12–15 GPa range (depending on formulation)
For comparison:
Steel: ~200 GPa
PP plastic: ~1–2 GPa
This places BMC/SMC between metals and conventional plastics—offering a balance of stiffness and processability.
Strength defines the failure limit under load.
For example:
SMC-1 flexural strength ≥ 170 MPa
BMC 1615 flexural strength ≥ 90 MPa
Once stress exceeds strength, irreversible failure occurs—this is a direct application of elasticity-based failure criteria.
Typically ranging from 0.25 to 0.35 for BMC/SMC, Poisson’s ratio is essential for finite element analysis as it describes transverse deformation under axial loading.
One of the most critical issues in BMC/SMC molding is residual stress formation.
During molding:
The surface cures first, forming a rigid shell
The inner material shrinks later during curing
This mismatch generates internal stress
As a result:
surface compressive stress
internal tensile stress
potential warpage or cracking
Mold temperature uniformity: ≤ ±5°C
Holding pressure stage: 50–70% peak pressure for 15–30 seconds
Post-curing: 80–100°C for 30–60 minutes
Low-shrink formulations: shrinkage ≤ 0.2% (17XX series materials)
When metal inserts are embedded in BMC/SMC parts, thermal expansion mismatch becomes critical.
BMC/SMC CTE: ~6–30 ×10⁻⁶ /°C
Metals: ~10–20 ×10⁻⁶ /°C
Elasticity theory enables prediction of stress concentration around inserts and helps optimize:
insert preheating
geometry design
material selection
Geometric discontinuities (corners, ribs, holes) significantly amplify local stress.
Design guidelines (e.g., R ≥ 0.5 mm at rib roots) are derived directly from stress concentration theory.
Modern BMC/SMC development relies heavily on FEA:
Build 3D model
Assign material properties
Apply loads and constraints
Solve stress/strain fields
Validate structural safety
This reduces trial-and-error in mold development and improves first-time success rates.
In high-voltage electrical components, mechanical stress can influence dielectric performance.
Micro-cracks caused by excessive stress may reduce insulation strength, making mechanical and electrical design tightly coupled.
Elasticity theory is not just a theoretical framework—it is the foundation of BMC/SMC material design, molding process optimization, and structural engineering.
From elastic modulus and strength data to residual stress control and finite element simulation, every stage of development is governed by mechanical principles.
Understanding these relationships allows engineers to move beyond raw data and interpret what material properties actually mean in real-world design.
